产品规格
耐温：80℃ or 90℃ or 105℃
额定电压：300V

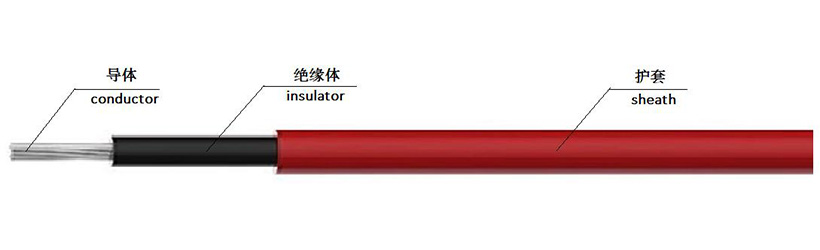

导体：退火镀锡铜丝或裸铜丝或硬铜丝
绝缘：PVC
护套： PVC
使用：电器内部接线
印字：E225526 UL AWM1569 (30…2AWG) (80℃ or 90℃ or 105℃) 300V cUL AWM I A (80℃ or 90℃ or 105℃) 300V FT-2 JIANG YIN TIAN QI SILICONE RUBBER PRODUCTS CO LTD
| 项目 / ITEMS | 要求 / REQUIREMENTS | 标准 / STANDARD | |||||||||||||||||
| 阻燃测试 / Flame Retardancy Test | 水平燃烧 / FT-2 | UL 758 | |||||||||||||||||
| 火花测试 / Spark Test | (AC 6KV or 7.5KV) / 0.15 S | UL 1581 | |||||||||||||||||
| 耐压测试 / Withstand Voltage Test | ( 2KV or 2.5 KV or 3KV or 3.5KV) /1min | UL 62 | |||||||||||||||||
|
绝缘机械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸强度 / Tensile Strength | ≥10.3 N/mm² | ||||||||||||||||
| 伸长率 / Elongation | ≥100% | ||||||||||||||||||
|
老化后 / After Aging (113or121 or136±1℃×168h) |
拉伸强度 / Tensile Strength | 70% before aging | |||||||||||||||||
| 伸长率 / Elongation | 45% before aging | ||||||||||||||||||
| 有害物质控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||
| 规格 | 导体 | 绝缘 | 护套 | 公差 | |||||||||||||||
| 截面积 | 结构 | 电阻 | 壁厚 | 最小壁厚 | 外径 | 壁厚 | 最小壁厚 | 总外径 | |||||||||||
| Sect. | Structure | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Diameter | Nom. Thicks. | Min. Thicks. | Overall Diameter | Allowance | ||||||||||
| AWG | mm² | No./mm | Ohm/km | Ohm/km | mm | mm | mm | mm | mm | mm | |||||||||
| 30 | 0.0507 | 7/0.10 | 381 | 0.38 | 0.33 | 1.08 | 0.23 | 1.55 | 1.55 | ±0.10 | |||||||||
| 29 | 0.0647 | 9/0.10 | 297 | 0.38 | 0.33 | 1.14 | 0.23 | 1.60 | 1.60 | ±0.10 | |||||||||
| 28 | 0.0804 | 11/0.10 | 239 | 0.38 | 0.33 | 1.18 | 0.23 | 0.20 | 1.65 | ±0.10 | |||||||||
| 27 | 0.102 | 13/0.10 | 188 | 0.38 | 0.33 | 1.22 | 0.23 | 0.20 | 1.70 | ±0.10 | |||||||||
| 26 | 0.128 | 8/0.15 | 150 | 0.38 | 0.33 | 1.28 | 0.23 | 0.20 | 1.75 | ±0.10 | |||||||||
| 25 | 0.162 | 9/0.16 | 199 | 0.38 | 0.33 | 1.35 | 0.23 | 0.20 | 1.82 | ±0.10 | |||||||||
| 24 | 0.205 | 7/0.20 | 94.2 | 0.38 | 0.33 | 1.40 | 0.23 | 0.20 | 1.88 | ±0.10 | |||||||||
| 23 | 0.259 | 11/0.18 | 74.5 | 0.38 | 0.33 | 1.48 | 0.23 | 0.20 | 1.95 | ±0.10 | |||||||||
| 22 | 0.324 | 13/0.18 | 59.4 | 0.38 | 0.33 | 1.55 | 0.23 | 0.20 | 2.03 | ±0.10 | |||||||||
| 21 | 0.412 | 17/0.18 | 46.9 | 0.38 | 0.33 | 1.65 | 0.23 | 0.20 | 2.13 | ±0.10 | |||||||||
| 20 | 0.519 | 21/0.18 | 36.7 | 0.38 | 0.33 | 1.75 | 0.23 | 0.20 | 2.23 | ±0.15 | |||||||||
| 19 | 0.653 | 26/0.18 | 29.1 | 0.38 | 0.33 | 1.85 | 0.23 | 0.20 | 3.33 | ±0.15 | |||||||||
| 18 | 0.823 | 33/0.18 | 23.2 | 0.38 | 0.33 | 2.00 | 0.23 | 0.20 | 2.47 | ±0.15 | |||||||||
| 17 | 1.04 | 40/0.18 | 18.3 | 0.38 | 0.33 | 2.10 | 0.23 | 0.20 | 2.57 | ±0.15 | |||||||||
| 16 | 1.31 | 52/0.18 | 14.6 | 0.38 | 0.33 | 2.30 | 0.23 | 0.20 | 2.77 | ±0.15 | |||||||||
| 15 | 1.65 | 33/0.254 | 11.3 | 0.38 | 0.33 | 2.55 | 0.23 | 0.20 | 3.03 | ±0.20 | |||||||||
| 14 | 2.08 | 41/0.254 | 8.96 | 0.38 | 0.33 | 2.75 | 0.23 | 0.20 | 3.23 | ±0.20 | |||||||||
| 13 | 2.63 | 52/0.254 | 7.10 | 0.38 | 0.33 | 3.00 | 0.23 | 0.20 | 3.48 | ±0.25 | |||||||||
| 12 | 3.31 | 47/0.30 | 5.64 | 0.38 | 0.33 | 3.30 | 0.23 | 0.20 | 3.78 | ±0.25 | |||||||||
| 11 | 4.17 | 59/0.30 | 4.48 | 0.38 | 0.33 | 3.60 | 0.23 | 0.20 | 4.08 | ±0.25 | |||||||||
| 10 | 5.26 | 75/0.30 | 3.546 | 0.38 | 0.33 | 4.20 | 0.23 | 0.20 | 4.68 | ±0.30 | |||||||||
| 9 | 6.631 | 53/0.40 | 2.230 | 0.76 | 0.69 | 5.30 | 0.23 | 0.20 | 5.78 | ±0.30 | |||||||||
| 8 | 8.367 | 70/0.40 | 2.230 | 0.76 | 0.69 | 5.75 | 0.23 | 0.20 | 6.23 | ±0.30 | |||||||||
| 7 | 10.55 | 84/0.40 | 1.768 | 0.76 | 0.69 | 6.20 | 0.23 | 0.20 | 6.68 | ±0.30 | |||||||||
| 6 | 13.30 | 105/0.40 | 1.403 | 0.76 | 0.69 | 6.90 | 0.23 | 0.20 | 7.38 | ±0.30 | |||||||||
| 5 | 16.77 | 133/0.40 | 1.113 | 0.76 | 0.69 | 7.60 | 0.23 | 0.20 | 8.08 | ±0.30 | |||||||||
| 4 | 21.15 | 168/0.40 | 0.882 | 0.76 | 0.69 | 8.50 | 0.23 | 0.20 | 8.98 | ±0.30 | |||||||||
| 3 | 26.67 | 210/0.40 | 0.6996 | 0.76 | 0.69 | 9.30 | 0.23 | 0.20 | 9.78 | ±0.30 | |||||||||
| 2 | 33.62 | 266/0.40 | 0.5548 | 0.76 | 0.69 | 10.20 | 0.23 | 0.20 | 10.68 | ±0.30 | |||||||||
