YGZ 中型硅橡胶多芯电缆
产品规格
耐温：-60 ℃ ~ 180℃
电压：300/500V

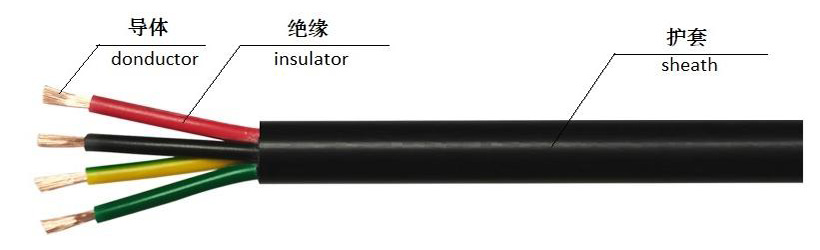

导体：退火镀锡铜丝
绝缘：硅橡胶
护套：硅橡胶
使用：电机，冶金，电力，油田，化工电气设备连接
印字：YGZ (2…37) G (0.2…2.5)mm2 180℃ 300/500V JIANGYIN TIANQI SILICONE RUBBER PRODUCTS CO., LTD.
技术参数
|
规格 |
导体 |
绝缘 |
护套 |
公差 |
|
芯数 ×截面积 |
结构 |
电阻 |
壁厚 |
外径 |
壁厚 |
电线总外径 |
|
|
No. of core ×Sect. |
Structure |
CR at 20℃ (Max) |
Nom. Thicks. |
Diameter |
Nom. Thicks. |
Overall Diameter |
Allowance |
|
mm2 |
No./mm |
Ohm/km |
Ohm/km |
mm |
mm |
mm |
mm |
|
2 × 0.2 |
7/0.20 |
94.2 |
0.4 |
1.40 |
0.8 |
4.40 |
±0.30 |
|
3 × 0.2 |
7/0.20 |
94.2 |
0.4 |
1.40 |
0.8 |
4.60 |
±0.30 |
|
4 × 0.2 |
7/0.20 |
94.2 |
0.4 |
1.40 |
0.8 |
5.00 |
±0.30 |
|
5 × 0.2 |
7/0.20 |
94.2 |
0.4 |
1.40 |
0.8 |
5.60 |
±0.30 |
|
2 × 0.3 |
7/0.25 |
71.2 |
0.4 |
1.50 |
0.8 |
4.60 |
±0.30 |
|
3 × 0.3 |
7/0.25 |
71.2 |
0.4 |
1.50 |
0.8 |
4.80 |
±0.30 |
|
4 × 0.3 |
7/0.25 |
71.2 |
0.4 |
1.50 |
0.8 |
5.40 |
±0.30 |
|
5 × 0.3 |
7/0.25 |
71.2 |
0.4 |
1.50 |
0.8 |
6.20 |
±0.30 |
2 × 0.5![]() |
28/0.15 |
40.1 |
0.5 |
2.00 |
0.8 |
5.60 |
±0.30 |
|
3 × 0.5 |
28/0.15 |
40.1 |
0.5 |
2.00 |
0.8 |
6.00 |
±0.30 |
|
4 × 0.5 |
28/0.15 |
40.1 |
0.5 |
2.00 |
0.8 |
6.40 |
±0.40 |
|
5 × 0.5 |
28/0.15 |
40.1 |
0.5 |
2.00 |
0.9 |
7.20 |
±0.40 |
|
6 × 0.5 |
28/0.15 |
40.1 |
0.5 |
2.00 |
1.0 |
8.00 |
±0.40 |
|
7 × 0.5 |
28/0.15 |
40.1 |
0.5 |
2.00 |
1.0 |
8.00 |
±0.40 |
|
2 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
0.8 |
6.20 |
±0.40 |
|
3 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
0.9 |
6.80 |
±0.40 |
|
4 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
0.9 |
7.50 |
±0.40 |
|
5 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.0 |
8.30 |
±0.40 |
|
6 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.1 |
9.20 |
±0.40 |
|
7 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.2 |
9.40 |
±0.40 |
|
10 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.2 |
11.40 |
±0.50 |
|
12 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.3 |
12.40 |
±0.50 |
|
14 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.3 |
13.00 |
±0.50 |
|
19 × 0.75 |
24/0.20 |
26.7 |
0.6 |
2.30 |
1.5 |
14.60 |
±0.50 |
|
2 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
0.9 |
6.80 |
±0.40 |
|
3 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
0.9 |
7.40 |
±0.40 |
|
4 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
0.9 |
7.80 |
±0.40 |
|
5 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.0 |
8.80 |
±0.40 |
|
6 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.1 |
9.80 |
±0.40 |
|
7 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.2 |
10.20 |
±0.40 |
|
10 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.2 |
12.00 |
±0.50 |
|
12 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.3 |
13.30 |
±0.50 |
|
14 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.4 |
14.20 |
±0.50 |
|
19 × 1.0 |
32/0.20 |
20.0 |
0.6 |
2.50 |
1.5 |
15.80 |
±0.50 |
|
2 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.0 |
8.00 |
±0.40 |
|
3 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.0 |
8.30 |
±0.40 |
|
4 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.1 |
9.30 |
±0.40 |
|
5 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.1 |
10.20 |
±0.50 |
|
6 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.2 |
11.20 |
±0.50 |
|
7 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.2 |
11.20 |
±0.50 |
|
10 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.3 |
13.60 |
±0.50 |
|
12 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.4 |
14.80 |
±0.50 |
|
14 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.4 |
15.60 |
±0.50 |
|
19 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.5 |
17.40 |
±0.50 |
|
24 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.6 |
20.80 |
±0.60 |
|
37 × 1.5 |
30/0.25 |
13.7 |
0.7 |
3.00 |
1.8 |
23.30 |
±0.70 |
|
2 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.1 |
9.40 |
±0.50 |
|
3 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.1 |
10.00 |
±0.50 |
|
4 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.2 |
11.20 |
±0.50 |
|
5 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.3 |
12.40 |
±0.50 |
|
6 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.4 |
13.60 |
±0.50 |
|
7 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.4 |
13.60 |
±0.50 |
|
10 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.5 |
16.00 |
±0.60 |
|
12 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.6 |
18.00 |
±0.60 |
|
14 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.7 |
19.10 |
±0.60 |
|
19 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.8 |
21.40 |
±0.60 |
|
24 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
1.9 |
25.60 |
±0.70 |
|
37 × 2.5 |
49/0.25 |
8.21 |
0.8 |
3.60 |
2.0 |
28.70 |
±0.70 |
