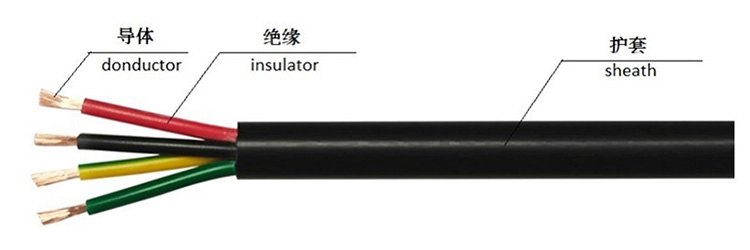

YGC 重型硅橡胶多芯电缆
产品规格
耐温： -60 ℃ ~ +180℃
电压：450/750V
导体：退火镀锡铜丝
绝缘：硅橡胶
护套：硅橡胶
使用：电机，冶金，电力，油田，化工电气设备连接
印字：it applies to the join of electrical equipments under high temperature, such as electrical motor, metallurgy, power, oilfield, chemical etc.
技术参数
|
规格 Item |
导体 Conductor |
绝缘 Insulator |
护套 Sheath |
公差 |
|
芯数 ×截面积 |
结构 |
电阻 |
壁厚 |
外径 |
壁厚 |
电线总外径 |
|
|
No. of core ×Sect. |
Structure |
CR at 20℃ (Max) |
Nom. Thicks. |
Diameter |
Nom. Thicks. |
Overall Diameter |
Allowance |
|
mm2 |
No./mm |
Ohm/km |
Ohm/km |
mm |
mm |
mm |
mm |
|
2 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.2 |
11.8 |
±0.50 |
|
3 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.2 |
12.4 |
±0.50 |
|
4 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.3 |
13.7 |
±0.50 |
|
5 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.3 |
14.8 |
±0.50 |
|
6 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.4 |
16.4 |
±0.50 |
|
7 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.4 |
16.4 |
±0.50 |
|
10 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.6 |
20.0 |
±0.60 |
|
12 × 4 |
56/0.30 |
5.09 |
1.0 |
4,7 |
1.8 |
21.4 |
±0.60 |
2 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.2 |
13.4 |
±0.50 |
|
3 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.4 |
14.6 |
±0.50 |
|
4 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.5 |
16.0 |
±0.50 |
|
5 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.5 |
17.4 |
±0.50 |
|
6 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.5 |
19.0 |
±0.50 |
|
7 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.6 |
19.0 |
±0.50 |
|
10 × 6 |
84/0.30 |
3.39 |
1.0 |
5.5 |
1.8 |
23.8 |
±0.60 |
|
2 × 10 |
84/0.40 |
1.95 |
1.0 |
6.6 |
1.8 |
17.0 |
±0.50 |
|
3 × 10 |
84/0.40 |
1.95 |
1.0 |
6.6 |
1.8 |
18.0 |
±0.50 |
|
4 × 10 |
84/0.40 |
1.95 |
1.0 |
6.6 |
2.0 |
20.0 |
±0.60 |
|
5 × 10 |
84/0.40 |
1.95 |
1.0 |
6.6 |
2.4 |
22.8 |
±0.60 |
|
2 × 16 |
126/0.40 |
1.24 |
1.2 |
8.4 |
2.4 |
21.6 |
±0.60 |
|
3 × 16 |
126/0.40 |
1.24 |
1.2 |
8.4 |
2.6 |
23.2 |
±0.60 |
|
4 × 16 |
126/0.40 |
1.24 |
1.2 |
8.4 |
2.6 |
25.6 |
±0.60 |
|
5 × 16 |
126/0.40 |
1.24 |
1.2 |
8.4 |
2.6 |
27.8 |
±0.60 |
|
2 × 25 |
196/0.40 |
0.795 |
1.3 |
10.1 |
2.4 |
25.0 |
±0.60 |
|
3 × 25 |
196/0.40 |
0.795 |
1.3 |
10.1 |
2.6 |
27.0 |
±0.60 |
|
4 × 25 |
196/0.40 |
0.795 |
1.3 |
10.1 |
2.6 |
29.6 |
±0.60 |
|
5 × 25 |
196/0.40 |
0.795 |
1.3 |
10.1 |
2.6 |
32.8 |
±0.70 |
|
2 × 35 |
276/0.40 |
0.565 |
1.4 |
11.5 |
2.4 |
28.0 |
±0.70 |
|
3 × 35 |
276/0.40 |
0.565 |
1.4 |
11.5 |
2.6 |
30.0 |
±0.70 |
|
4 × 35 |
276/0.40 |
0.565 |
1.4 |
11.5 |
2.6 |
33.0 |
±0.70 |
|
3 × 50 |
396/0.40 |
0.393 |
1.6 |
14.0 |
2.8 |
36.0 |
±0.70 |
|
4 × 50 |
396/0.40 |
0.393 |
1.6 |
14.0 |
2.8 |
39.6 |
±0.70 |
|
3 × 70 |
551/0.40 |
0.277 |
1.6 |
15.6 |
3.0 |
40.0 |
±0.80 |
|
3 × 95 |
760/0.40 |
0.210 |
1.8 |
18.2 |
3.2 |
45.8 |
±0.80 |
|
3 × 120 |
608/0.50 |
0.164 |
2.0 |
20.0 |
3.6 |
50.6 |
±0.80 |
|
3 × 150 |
760/0.50 |
0.132 |
2.2 |
22.4 |
3.8 |
56.2 |
±0.80 |
|
3 × 185 |
925/0.50 |
0.108 |
2.4 |
24.8 |
4.0 |
61.8 |
±0.80 |
|
3 × 240 |
1221/0.50 |
0.082 |
2.6 |
28.2 |
4.2 |
69.4 |
±0.80 |
