| 项目 / ITEMS | 要求 / REQUIREMENTS | 标准 / STANDARD | ||||||||||||||
| 阻燃测试 / Flame Retardancy Test | 水平燃烧 / FT-2 | UL 758 | ||||||||||||||
| 火花测试 / Spark Test | AC 3KV / 0.15 S | UL 1581 | ||||||||||||||
| 耐压测试 / Withstand Voltage Test | 1.5KV / 1min. | UL 62 | ||||||||||||||
|
绝缘机械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸强度 / Tensile Strength | ≥3.45 N/mm² | |||||||||||||
| 伸长率 / Elongation | ≥100% | |||||||||||||||
|
老化后 / After Aging (210±1℃×1440h) |
拉伸强度 / Tensile Strength | 60% before aging | ||||||||||||||
| 伸长率 / Elongation | 25% before aging | |||||||||||||||
| 有害物质控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | ||||||||||||||

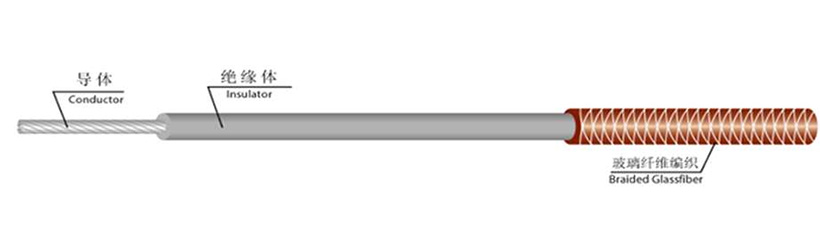

| 规格AWG | 导体 Conductor | 绝缘 Insulation | 编织 Braiding | 公差 | |||||||||||||||
| 截面积 | 结构 | 外径 | 电阻 | 标称厚度 | 最小壁厚 | 外径 | 编织厚度 | 总外径 | |||||||||||
| Sect. | Structure | Dia. | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Dia | Braiding Thicks. | Overall Diameter | Allowance | ||||||||||
| mm² | No./mm | mm | Ohm/km | mm | mm | mm | mm | mm | mm | ||||||||||
| 26 | 0.128 | 8/0.15 | 0.48 | 150 | 0.38 | 0.33 | 1.25 | 0.15 | 1.55 | ±0.10 | |||||||||
| 26 | 0.128 | 7/0.16 | 0.48 | 150 | 0.38 | 0.33 | 1.25 | 0.15 | 1.55 | ±0.10 | |||||||||
| 24 | 0.205 | 7/0.20 | 0.6 | 94.2 | 0.38 | 0.33 | 1.40 | 0.15 | 1.70 | ±0.15 | |||||||||
|
22 |
0.324 | 7/0.25 | 0.75 | 59.4 | 0.38 | 0.33 | 1.55 | 0.15 | 1.85 | ±0.15 | |||||||||
| 22 | 0.324 | 13/0.18 | 0.75 | 59.4 | 0.38 | 0.33 | 1.55 | 0.15 | 1.85 | ±0.15 | |||||||||
| 22 | 0.3 | 17/0.15 | 0.71 | 59.4 | 0.38 | 0.33 | 1.50 | 0.15 | 1.80 | ±0.15 | |||||||||
| 20 | 0.519 | 21/0.18 | 0.93 | 36.7 | 0.38 | 0.33 | 1.75 | 0.15 | 2.05 | ±0.15 | |||||||||
| 20 | 0.519 | 7/0.30 | 0.93 | 36.7 | 0.38 | 0.33 | 1.70 | 0.15 | 2.00 | ±0.15 | |||||||||
| 20 | 0.5 | 28/0.15 | 0.91 | 36.7 | 0.38 | 0.33 | 1.68 | 0.15 | 1.98 | ±0.15 | |||||||||
| 18 | 0.823 | 7/0.39 | 1.18 | 23.2 | 0.38 | 0.33 | 1.98 | 0.15 | 2.28 | ±0.15 | |||||||||
| 18 | 0.823 | 33/0.18 | 1.18 | 23.2 | 0.38 | 0.33 | 1.98 | 0.15 | 2.28 | ±0.15 | |||||||||
| 18 | 0.75 | 30/0.18 | 1.14 | 23.2 | 0.38 | 0.33 | 1.96 | 0.15 | 2.26 | ±0.15 | |||||||||
| 17 | 1.0 | 32/0.20 | 1.31 | 18.3 | 0.38 | 0.33 | 2.08 | 0.15 | 2.38 | ±0.15 | |||||||||
| 16 | 1.31 | 7/0.49 | 1.50 | 14.6 | 0.38 | 0.33 | 2.38 | 0.15 | 2.68 | ±0.15 | |||||||||
| 16 | 1.31 | 52/0.18 | 1.50 | 14.6 | 0.38 | 0.33 | 2,38 | 0.15 | 2.68 | ±0.15 | |||||||||
| 16 | 1.25 | 50/0.18 | 1.47 | 14.6 | 0.38 | 0.33 | 2.36 | 0.15 | 2.66 | ±0.15 | |||||||||
