| 项目 / ITEMS | 要求 / REQUIREMENTS | 标准 / STANDARD | |||||||||||||||||
| 阻燃测试 / Flame Retardancy Test | 水平燃烧 / FT-2 | UL 758 | |||||||||||||||||
| 火花测试 / Spark Test | AC 6KV / 0.15 S | UL 1581 | |||||||||||||||||
| 耐压测试 / Withstand Voltage Test | ( 2KV or 2.5 KV or 3KV or 3.5KV) /1min | UL 62 | |||||||||||||||||
|
绝缘机械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸强度 / Tensile Strength | ≥3.45 N/mm² | ||||||||||||||||
| 伸长率 / Elongation | ≥100% | ||||||||||||||||||
|
老化后 / After Aging (158±1℃×1440h) |
拉伸强度 / Tensile Strength | 60% before aging | |||||||||||||||||
| 伸长率 / Elongation | 25% before aging | ||||||||||||||||||
| 有害物质控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||

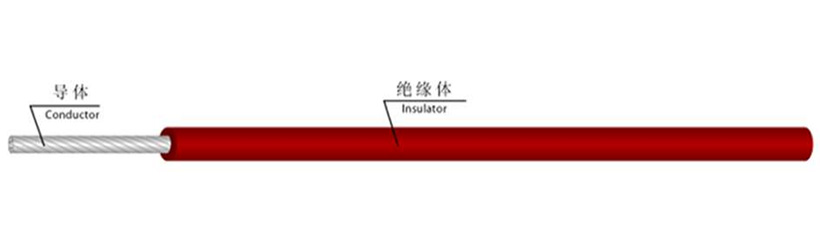

| 规格 | 导体 | 绝缘 | 公差 | ||||||||||||||||
| 截面积 | 结构 | 电阻 | 壁厚 | 最小壁厚 | 总外径 | ||||||||||||||
| Sect. | Structure | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Overall Diameter | Allowance | |||||||||||||
| AWG | mm² | No./mm | Ohm/km | mm | mm | mm | mm | ||||||||||||
| 26 | 0.128 | 7/0.16 | 150 | 0.76 | 0.69 | 2.00 | ±0.10 | ||||||||||||
| 24 | 0.205 | 7/0.20 | 94.2 | 0.76 | 0.69 | 2.15 | ±0.10 | ||||||||||||
| 22 | 0.324 | 13/0.18 | 59.4 | 0.76 | 0.69 | 2.28 | ±0.10 | ||||||||||||
| 20 | 0.519 | 21/0.18 | 36.7 | 0.76 | 0.69 | 2.45 | ±0.15 | ||||||||||||
|
18 |
0.823 | 33/0.18 | 23.2 | 0.76 | 0.69 | 2.74 | ±0.15 | ||||||||||||
| 16 | 1.31 | 52/0.28 | 14.6 | 0.76 | 0.69 | 3.02 | ±0.20 | ||||||||||||
| 14 | 2.08 | 41/0.254 | 8.96 | 0.76 | 0.69 | 3.43 | ±0.20 | ||||||||||||
| 12 | 3.31 | 47/0.30 | 5.64 | 0.76 | 0.69 | 4.10 | ±0.25 | ||||||||||||
| 10 | 5.26 | 75/0.30 | 3.546 | 1.14 | 1.03 | 5.50 | ±0.25 | ||||||||||||
| 8 | 8.367 | 70/0.40 | 2.230 | 1.52 | 1.37 | 7.50 | ±0.25 | ||||||||||||
| 7 | 10.55 | 84/0.40 | 1.768 | 1.52 | 1.37 | 7.70 | ±0.30 | ||||||||||||
| 6 | 13.30 | 105/0.40 | 1.403 | 1.52 | 1.37 | 8.40 | ±0.30 | ||||||||||||
| 5 | 16.77 | 133/0.40 | 1.113 | 1.52 | 1.37 | 9.10 | ±0.40 | ||||||||||||
| 4 | 21.15 | 168/0.40 | 0.882 | 1.52 | 1.37 | 9.90 | ±0.40 | ||||||||||||
| 3 | 26.67 | 210/0.40 | 0.6996 | 1.52 | 1.37 | 10.70 | ±0.40 | ||||||||||||
| 2 | 33.62 | 266/0.40 | 0.5548 | 1.52 | 1.37 | 11.60 | ±0.40 | ||||||||||||
| 1 | 42.41 | 217/0.50 | 0.4398 | 2.04 | 1.84 | 13.60 | ±0.40 | ||||||||||||
| 1/0 | 53.49 | 276/0.50 | 0.3487 | 2.04 | 1.84 | 15.20 | ±0.40 | ||||||||||||
| 2/0 | 67.53 | 342/0.50 | 0.2766 | 2.04 | 1.84 | 16.20 | ±0.40 | ||||||||||||
| 3/0 | 85.01 | 437/0.50 | 0.2194 | 2.04 | 1.84 | 17.80 | ±0.40 | ||||||||||||
| 4/0 | 107.2 | 551/0.50 | 0.1722 | 2.04 | 1.84 | 19.50 | ±0.50 | ||||||||||||
| kcmil250 | 127 | 646/0.50 | 0.1473 | 2.42 | 2.18 | 21.60 | ±0.50 | ||||||||||||
| kcmil300 | 152 | 779/0.50 | 0.1227 | 2.42 | 2.18 | 23.30 | ±0.50 | ||||||||||||
| kcmil350 | 177 | 912/0.50 | 0.1052 | 2.42 | 2.18 | 24.80 | ±0.50 | ||||||||||||
| kcmil400 | 203 | 1036/0.50 | 0.09109 | 2.42 | 2.18 | 26.30 | ±0.50 | ||||||||||||
| kcmil450 | 228 | 1184/0.50 | 0.08097 | 2.42 | 2.18 | 27.60 | ±0.50 | ||||||||||||
| kcmil500 | 253 | 1295/0.50 | 0.07287 | 2.42 | 2.18 | 28.70 | ±0.50 | ||||||||||||
| kcmil550 | 279 | 1443/0.50 | 0.06693 | 2.80 | 2.52 | 30.80 | ±0.50 | ||||||||||||
| kcmil600 | 304 | 1554/0.50 | 0.06135 | 2.80 | 2.52 | 31.80 | ±0.60 | ||||||||||||
| kcmil650 | 329 | 1665/0.50 | 0.05606 | 2.80 | 2.52 | 32.60 | ±0.60 | ||||||||||||
| kcmil700 | 355 | 1813/0.50 | 0.05205 | 2.80 | 2.52 | 33.80 | ±0.60 | ||||||||||||
| kcmil750 | 380 | 1924/0.50 | 0.04858 | 2.80 | 2.52 | 34.60 | ±0.60 | ||||||||||||
